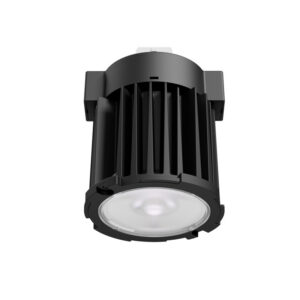

4” Downlight

Features: Recessed, Adjustable, Wall Wash, Decorative, Warm Dim, Tunable White, Emergency

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (16.5W), 2000 lm (24.5W), 2500 lm (27.5W), 3000 lm (34.0W), 3500 lm (40.5W)

Color Quality: 93+ CRI, 2-step SDCM

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90° General Ambient

Dimming: 0-10V (1%), DALI-2 (0.1%)

Input: 120/277V

Installation: New Construction

Trims: Round, Square, Hyperbolic, Pinhole, Wall Wash, Flangeless, Decorative, Emergency

Finish: White, Black, Bronze, Clear Diffuse, Warm Diffuse, Custom

Ratings: Energy Star, Declare Listed, RoHS Compliant, Wet Location, NSF/ASNI 2 Splash Zone Safe Listed

Warranty: 5 year; 50,000 hours

Go To Configurator

resources

Videos

Coming Soon

Lumen package offerings from 750-3500

The M Series commercial family allows for solutions for a wide range of commercial applications, and site requirements providing continuity in aesthetic and performance throughout varying ceiling heights.

Performance. Flexibility. And your job, made simpler.

The M Series Commercial Family allows for many solutions up to 3500lm of superior lighting at 90+ CRI, perfect for higher ceiling applications. Its tool-free, field changeable lenses and trims offer endless customization as tenant needs evolve.

Designed with you in mind.

The M Series Commercial fixture was designed with a host of features like universal bar hangers aimed at shaving minutes off of installation times while also including elements allowing for complete serviceability from below the ceiling plane years after the fixture is installed.

The Modular M Series makes redesign a breeze.

Swapping from fixed to adjustable is as easy as changing a lightbulb – quick connects make this solution plug and play. Easily handle any design changes, even post installation.
