Go To Configurator

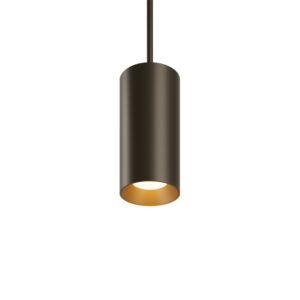

X Series Cylinder

3″ Cylinder

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White

Size: 6.5 inch, 9 inch

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W)

Color Quality: 93+ CRI, 2-step SDCM

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Beam Spread: 25° Spot, 40° Flood, 60° Wide Flood

Dimming: 0-10V 1%, TRIAC/ELV 1%, DALI 0.1%

Input: 120/277V

Trims: Round, Snoot (Coming Soon), Wall Wash (Coming Soon), Decorative (Coming Soon)

Finish: White, Black, Bronze (Coming Soon), Brushed Aluminum (Coming Soon), Custom Color (Coming Soon)

Ratings: Energy Star, Title 24 JA8, Wet Location

Warranty: 5 year; 50,000 hours

resources

Spec Sheet
Brochure
IES Files
Revit Files
Installation Instructions
Videos
  • 3.5" Cylinders
  • Field Changeable
  • Application Compatible

Pendant, Wall Sconce, and Surface Mounting

Versatile, small diameter cylinder family with the highest quality downlighting with optional uplighting.

DRDM_Overview-1
DRDM_Overview-2
DRDM_Overview-3

Radically simplify configuration in the field

Field cuttable stem mounts and a wide range of beam angles, lumen outputs, finishes, trim and shade options, uplighting, and more.

Wet Listed and ADA Compatibility

Water-tight options for exteriors. Wall Sconce depth less than 4″.

Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White

Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W)

Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White

Trims: Round, Hyperbolic, Snoot, Wall Wash, Decorative, Shade

Ratings: Energy Star, Title 24 JA8, Wet Location
