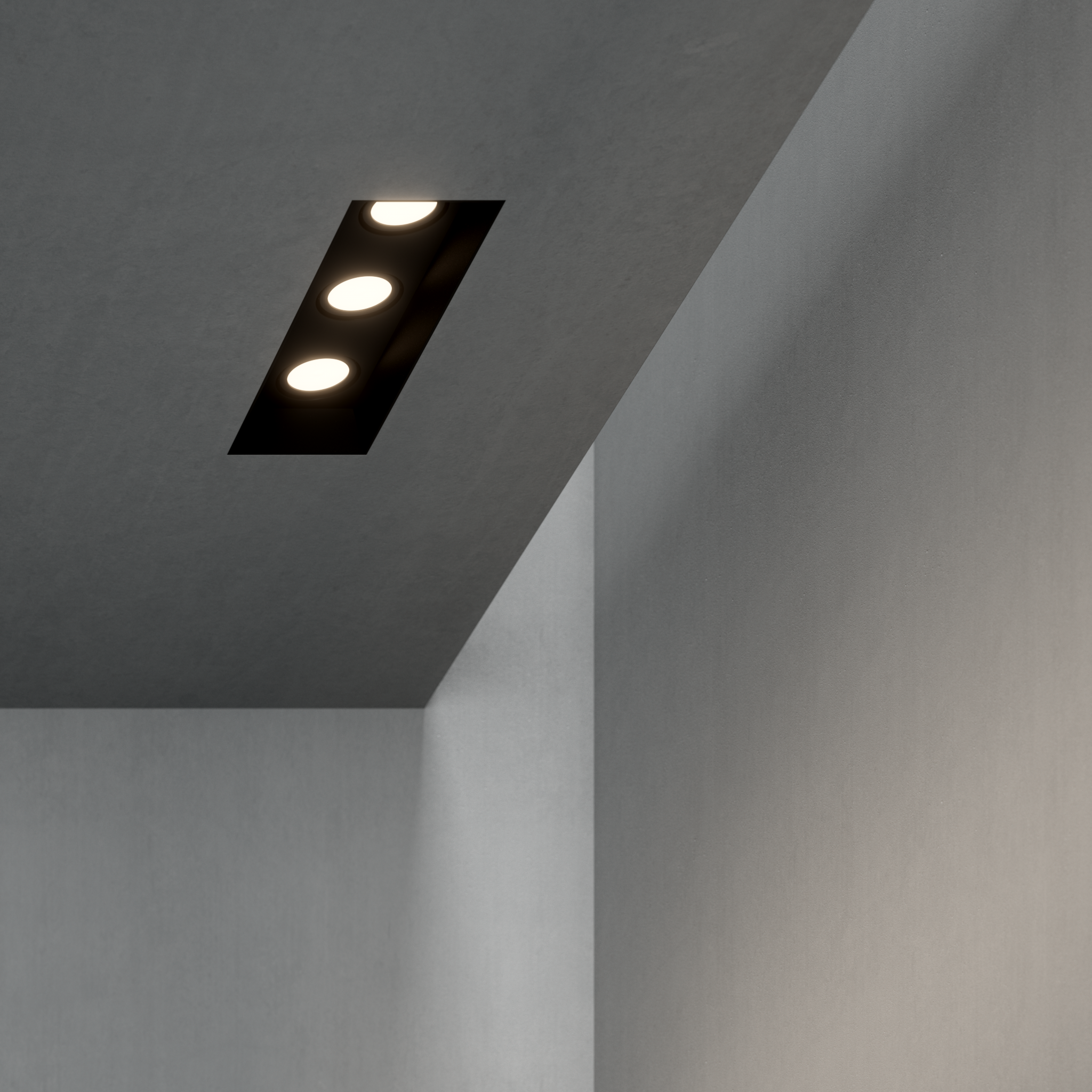

M Series Multiples
4” Multiples
Features: Recessed, Adjustable, Multiple
Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture
Color Quality: 93 CRI, 2-step SDCM
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White
Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, Linear, Soft Focus
Dimming: 0-10V 1%, TRIAC/ELV 1%, DALI-2 0.1%
Input: 120/277V
Installation: New Construction, Flangeless Mud-In
Trims: Rectangle, Flangeless
Finish: White, Black, Custom Color
Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe
Warranty: 5 year; 50,000 hours
resources
Spec Sheet
Installation Instructions
Videos
Features: Recessed, Adjustable, Multiple
Lumens: 750 lm (9.5W), 1000 lm (12.5W) per head, Up to 3000lm per Fixture
Color Temperature: 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White
Trims: Rectangle, Flangeless
Ratings: Energy Star, Title 24 JA8, Declare Listed, Damp Location, NSF/ANSI 2 Splash Zone Safe
