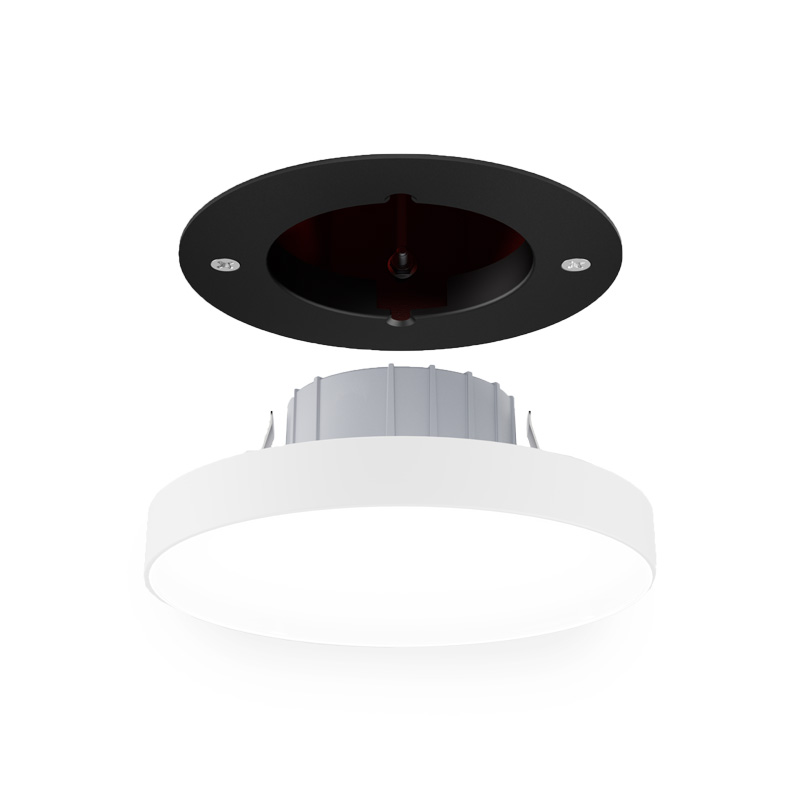

S Series Retrofit
Surface Mount Retrofit Offerings
Features: Solutions to adapt to existing 3O, 4O, and 4R junction boxes
Lumens: 750 lm (9W), 1000 lm (12W), 1500 lm (17W)
Color Quality: 90+ CRI, < 3-step SDCM
Color Temperature: 2700K, 3000K, 3500K
Beam Spread: Flood
Dimming: 0-10V 1%, TRIAC/ELV 5%
Input: 120/277V 0-10V, 120V only TRIAC/ELV
Size: 4″ Round, 4″ Square, 8″ Round, 18″ Linear
Finish: White
Ratings: Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated
Warranty: 5 year; 50,000 hours
resources
Spec Sheet
Videos
Features: Solutions to adapt to existing 3O, 4O, and 4R junction boxes
Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)
Color Temperature : 2700K, 3000K, 3500K
Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear
Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated
