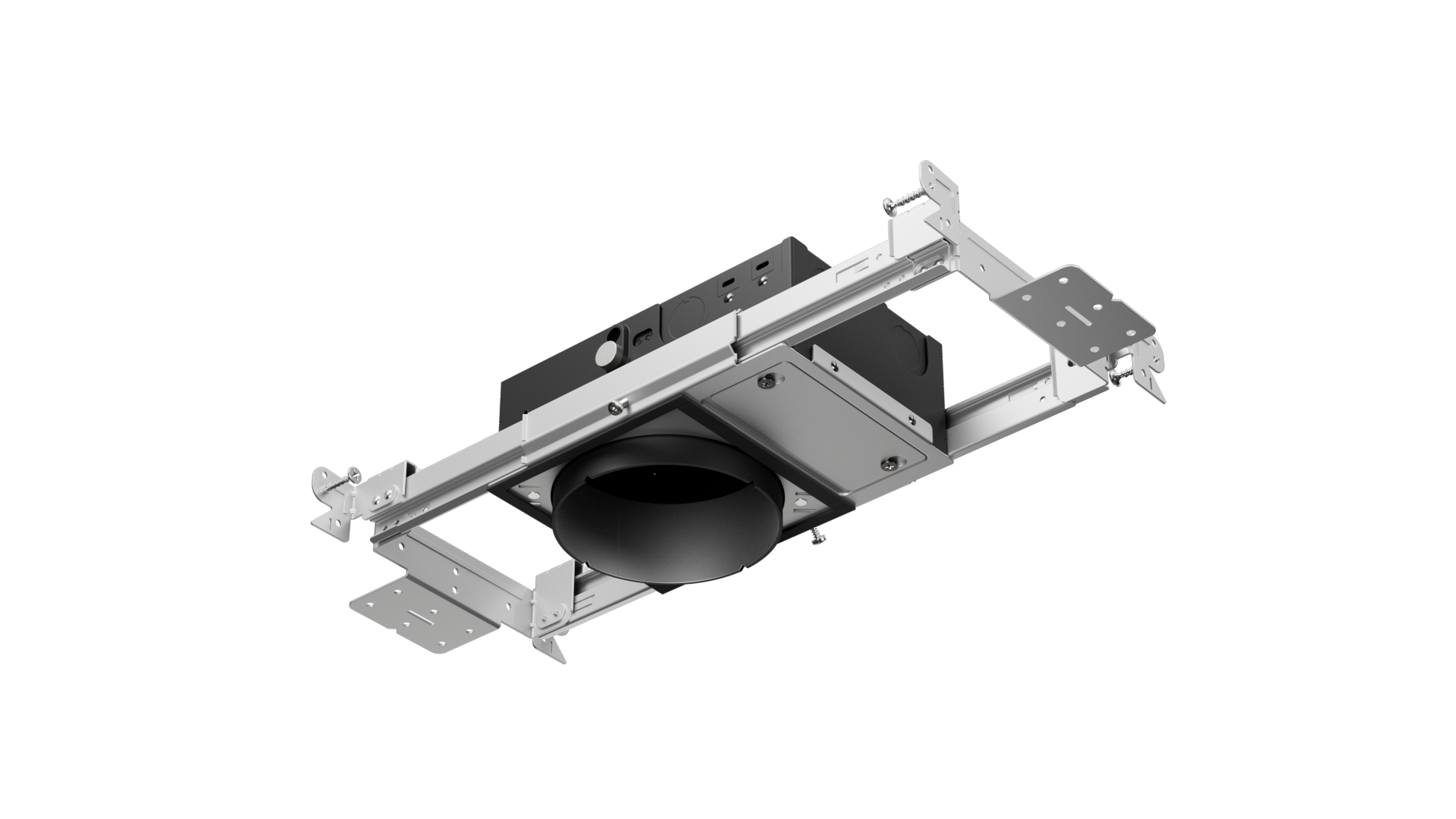

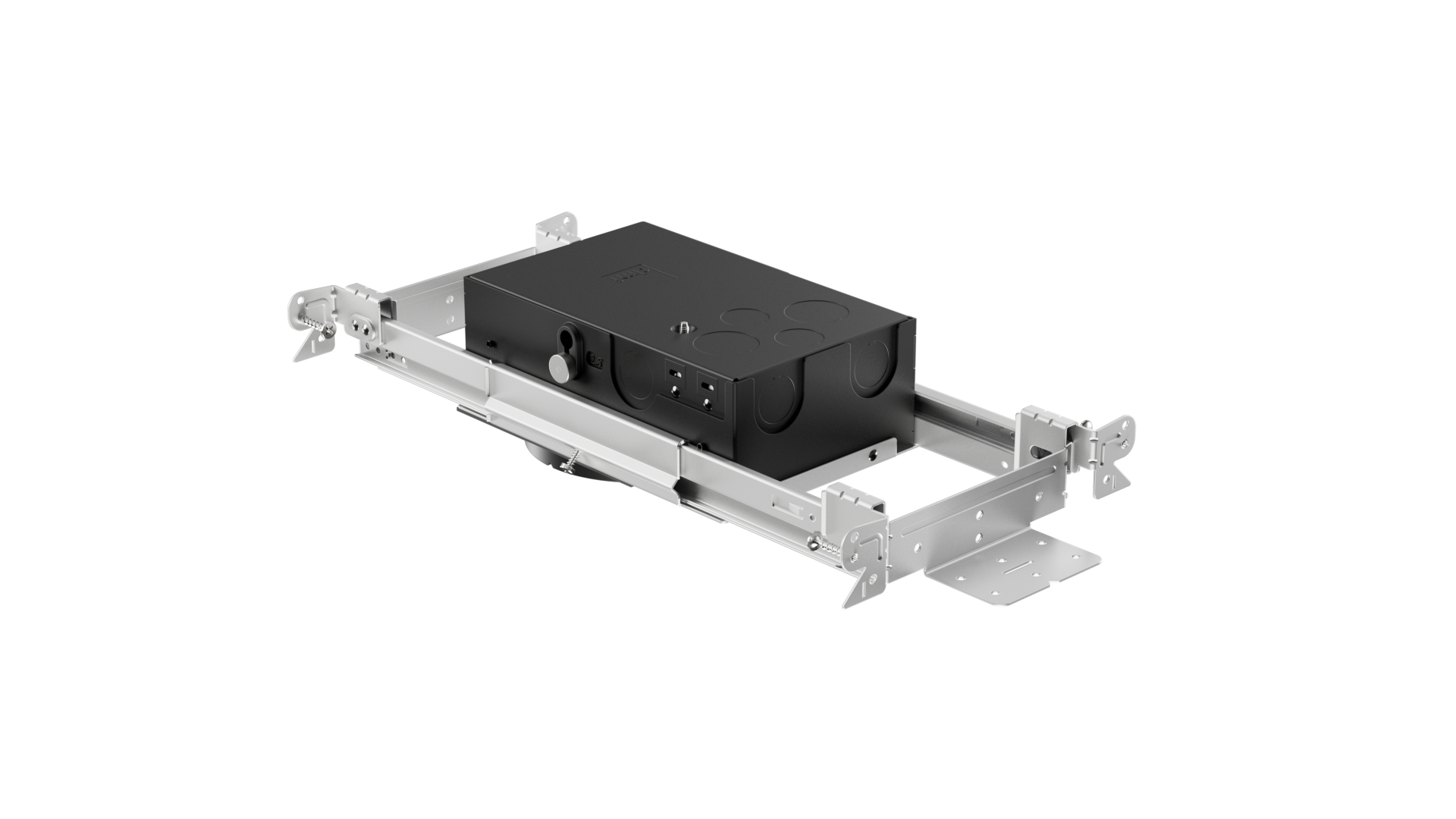

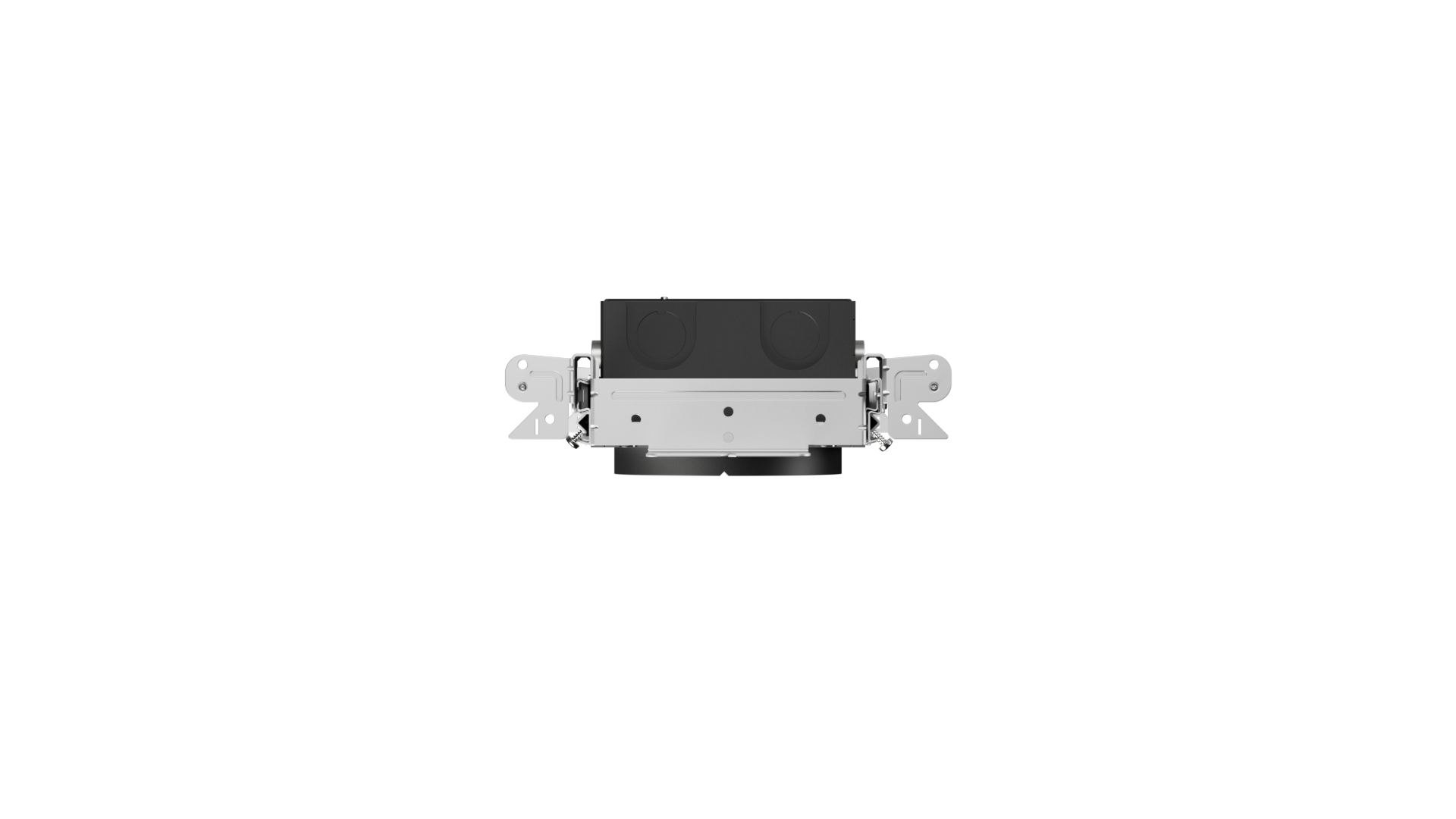

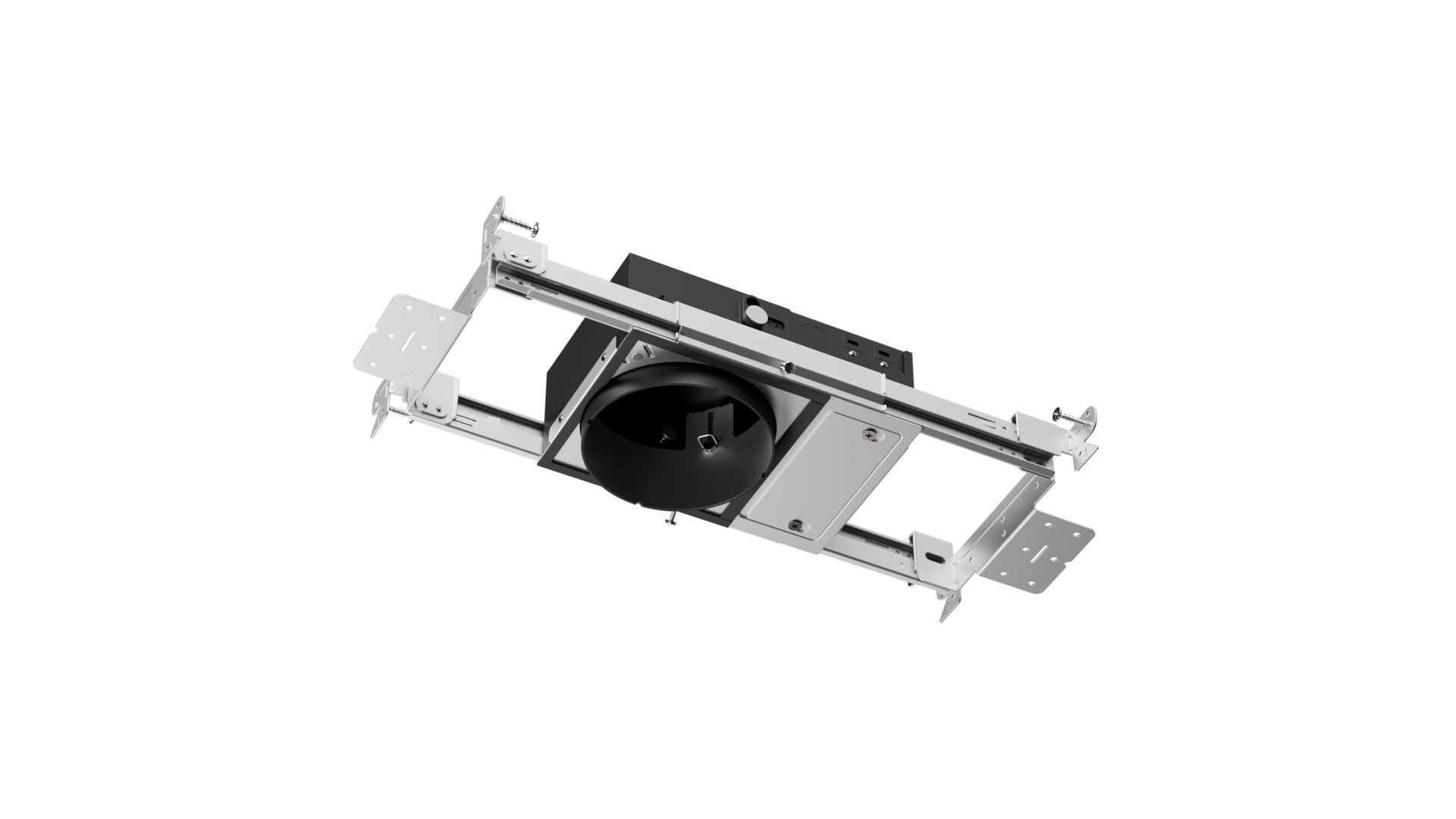

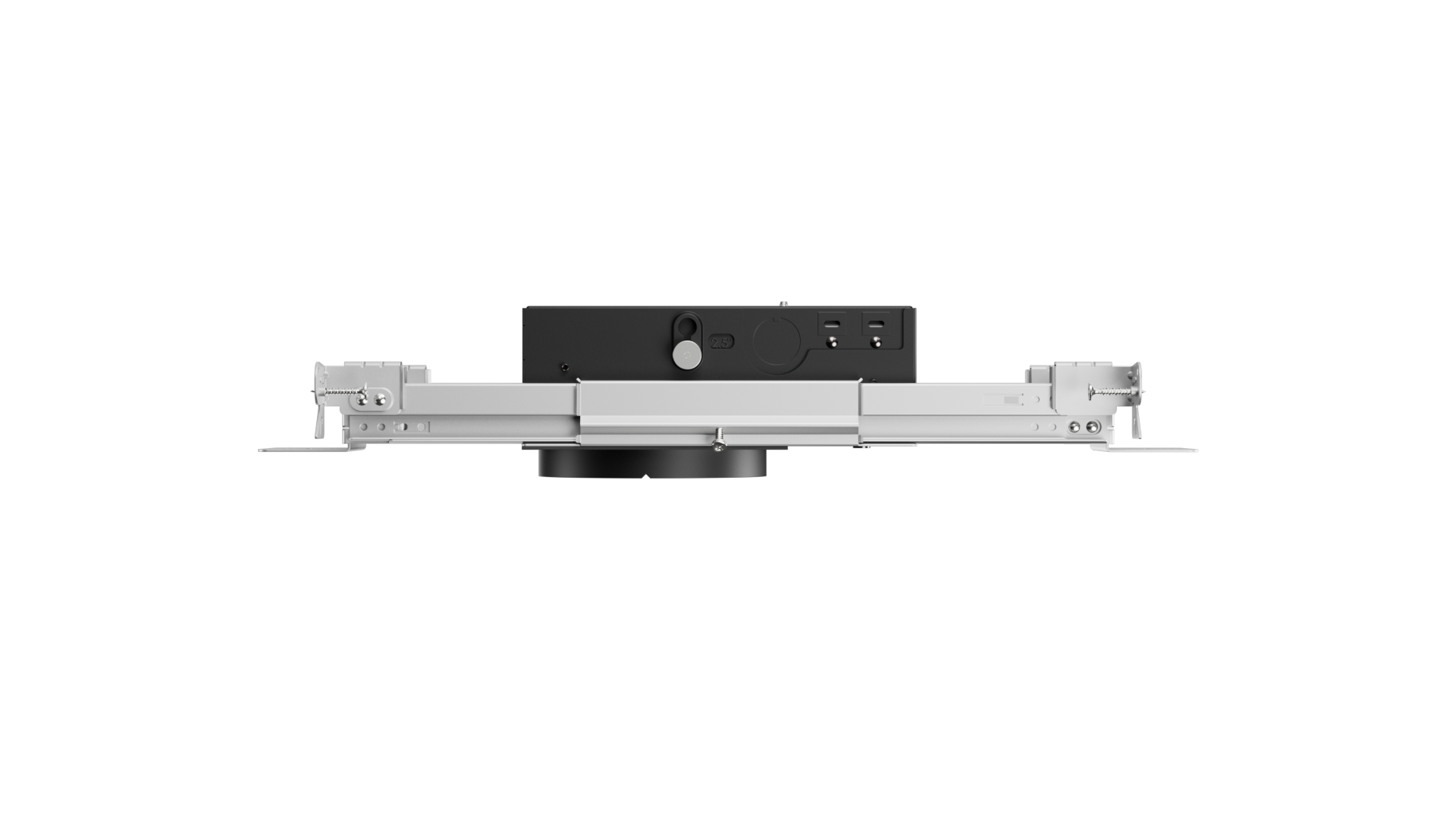

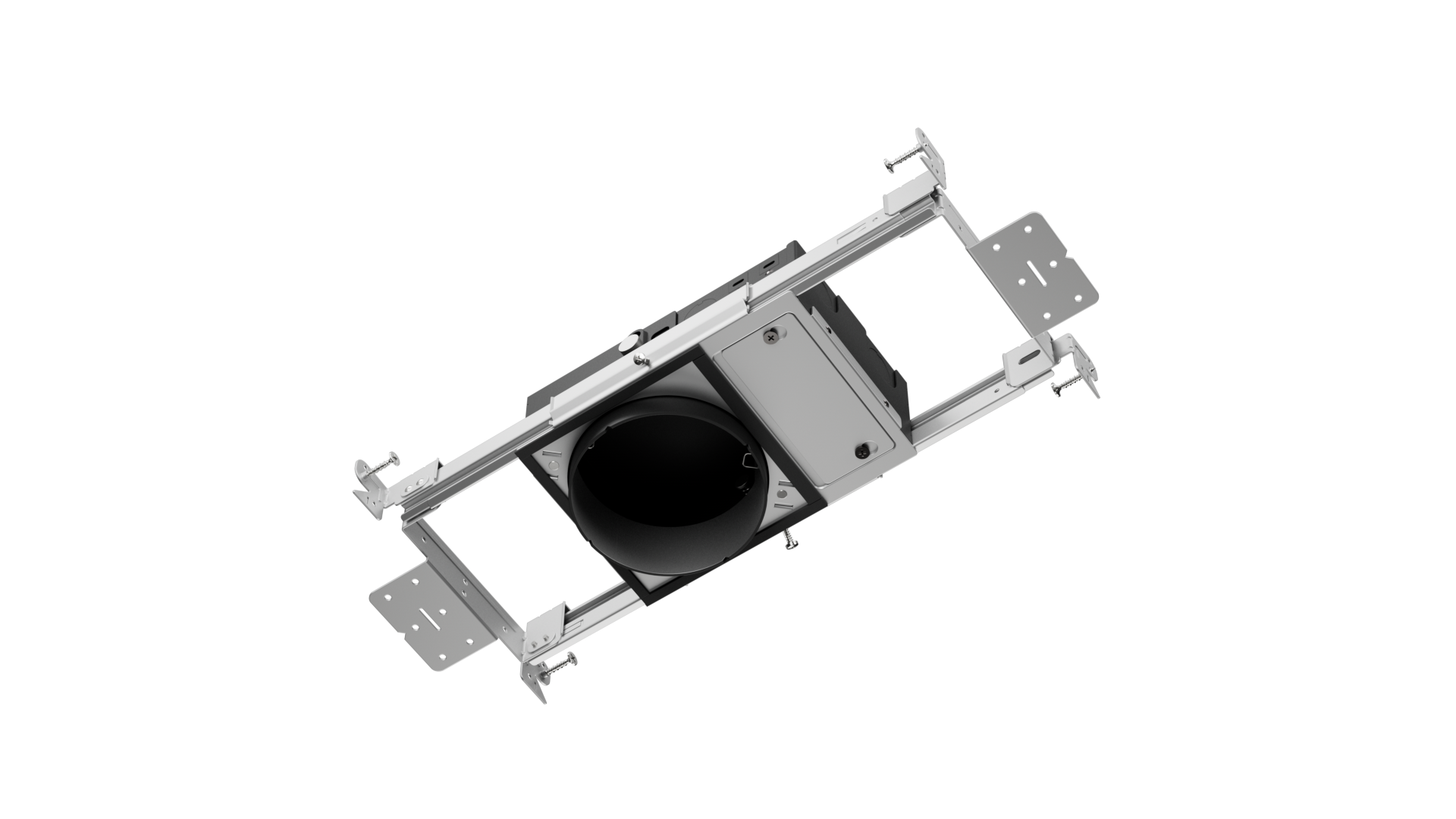

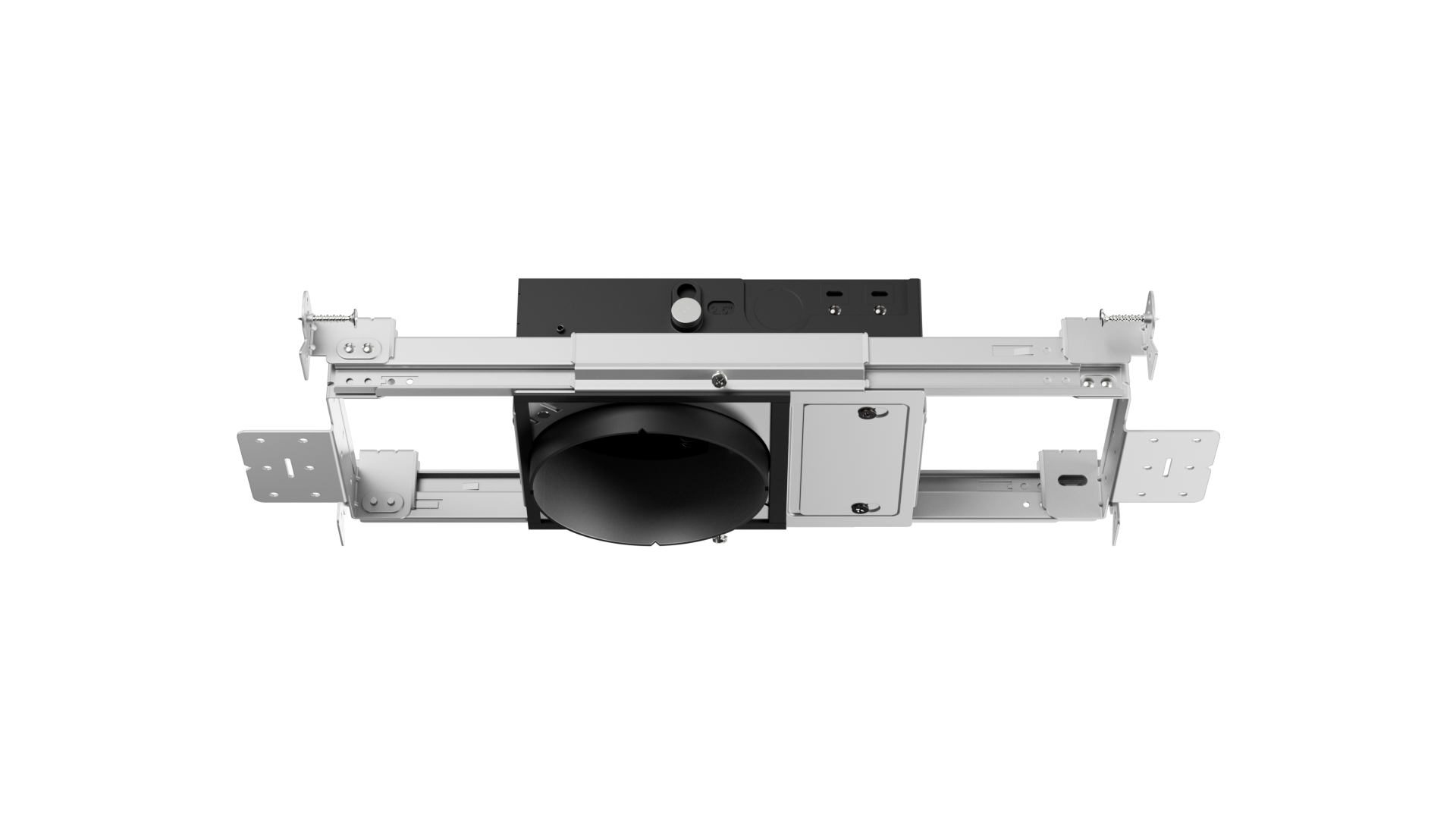

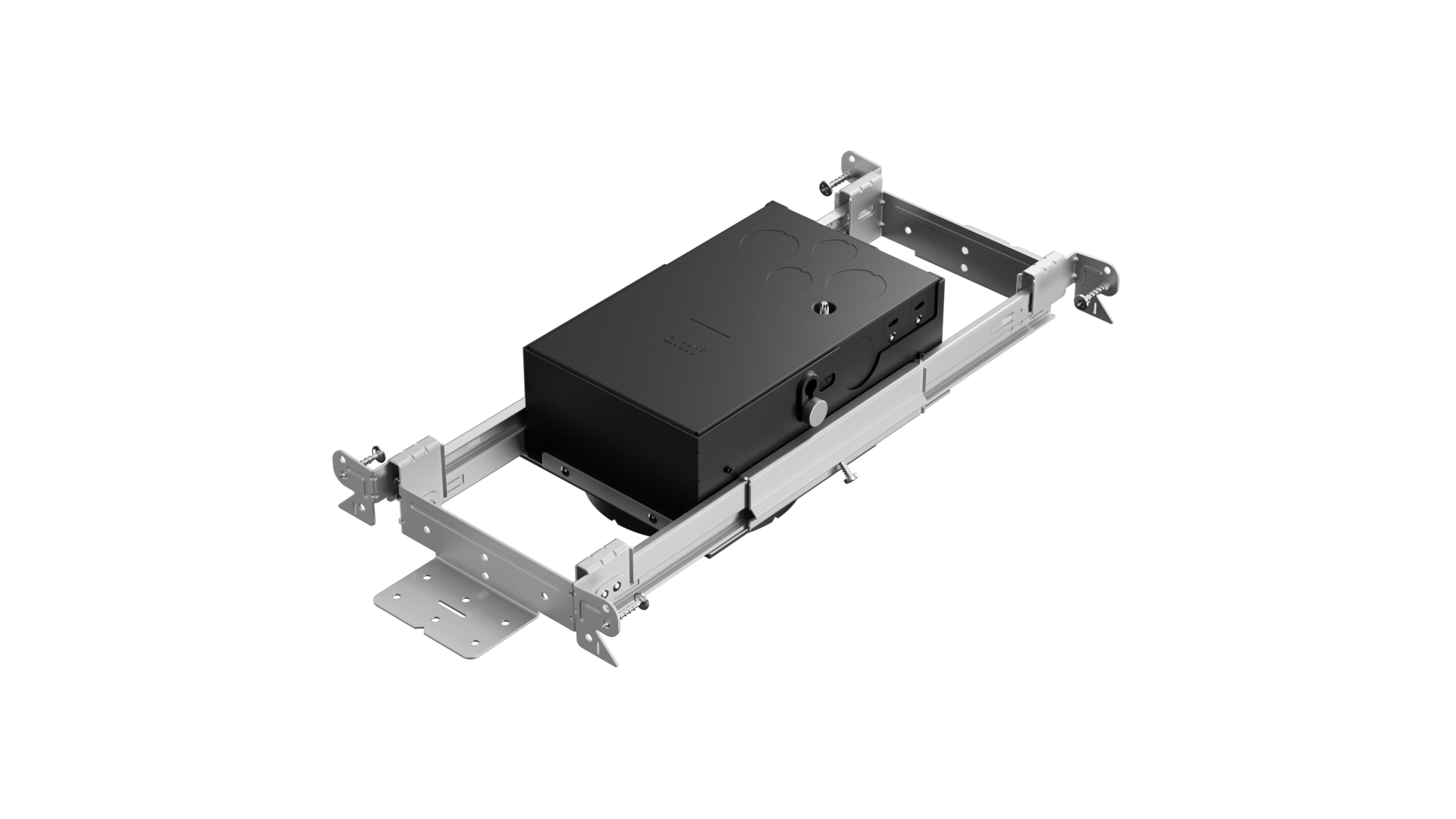

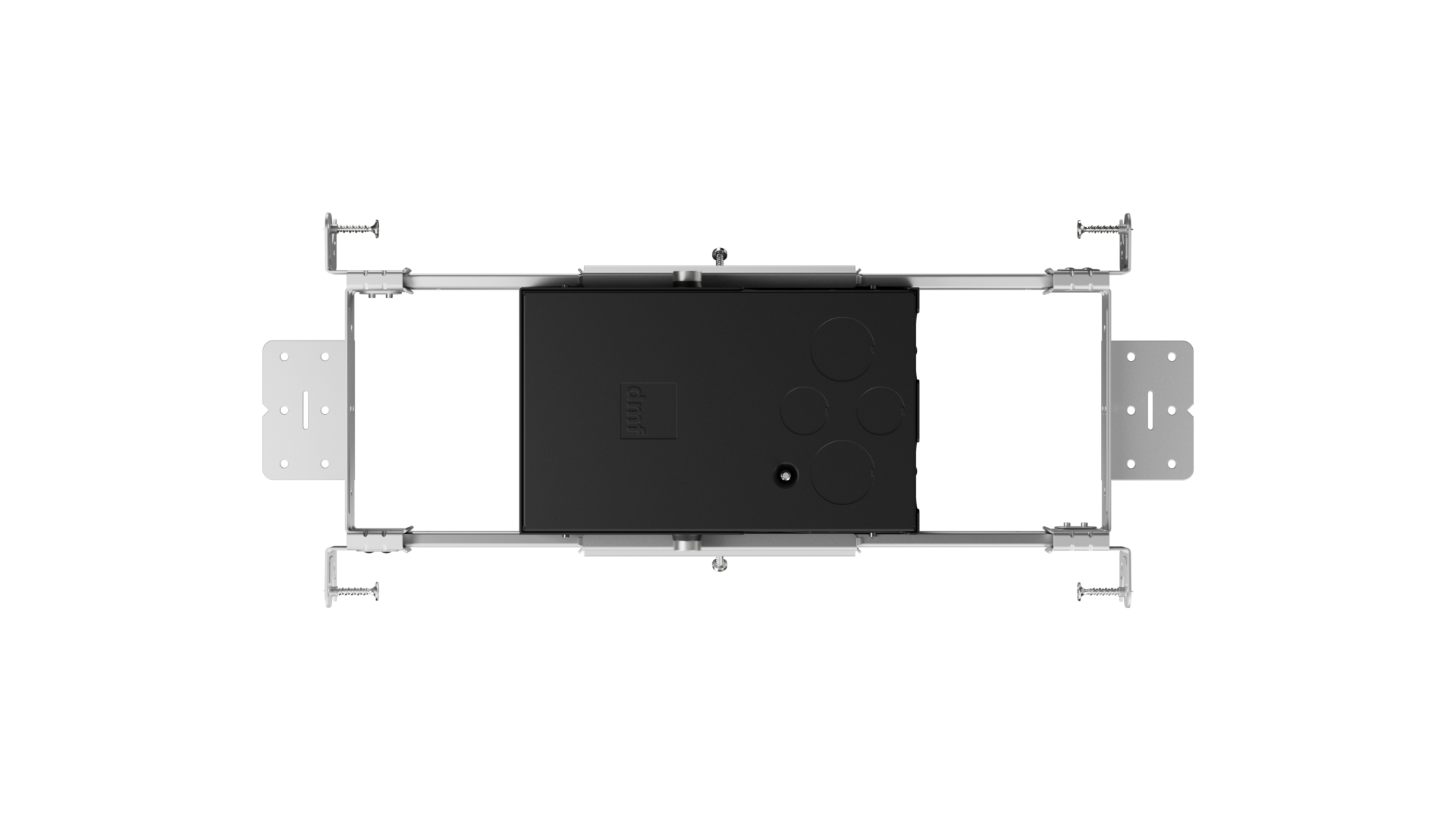

4″ Round Super Shallow Housing
M Series Housing
Features: Low Profile – 2.5″, Recessed, Patented Bar Hangers
Compatibility: DRD Series Modules and M Series Round Trims
Installation: New Construction, Shallow Plenum
Ratings: IC, Suitable for Use in Air-Handling Space – Complies with UL2043 & ASTM E283 Certified Air Tight

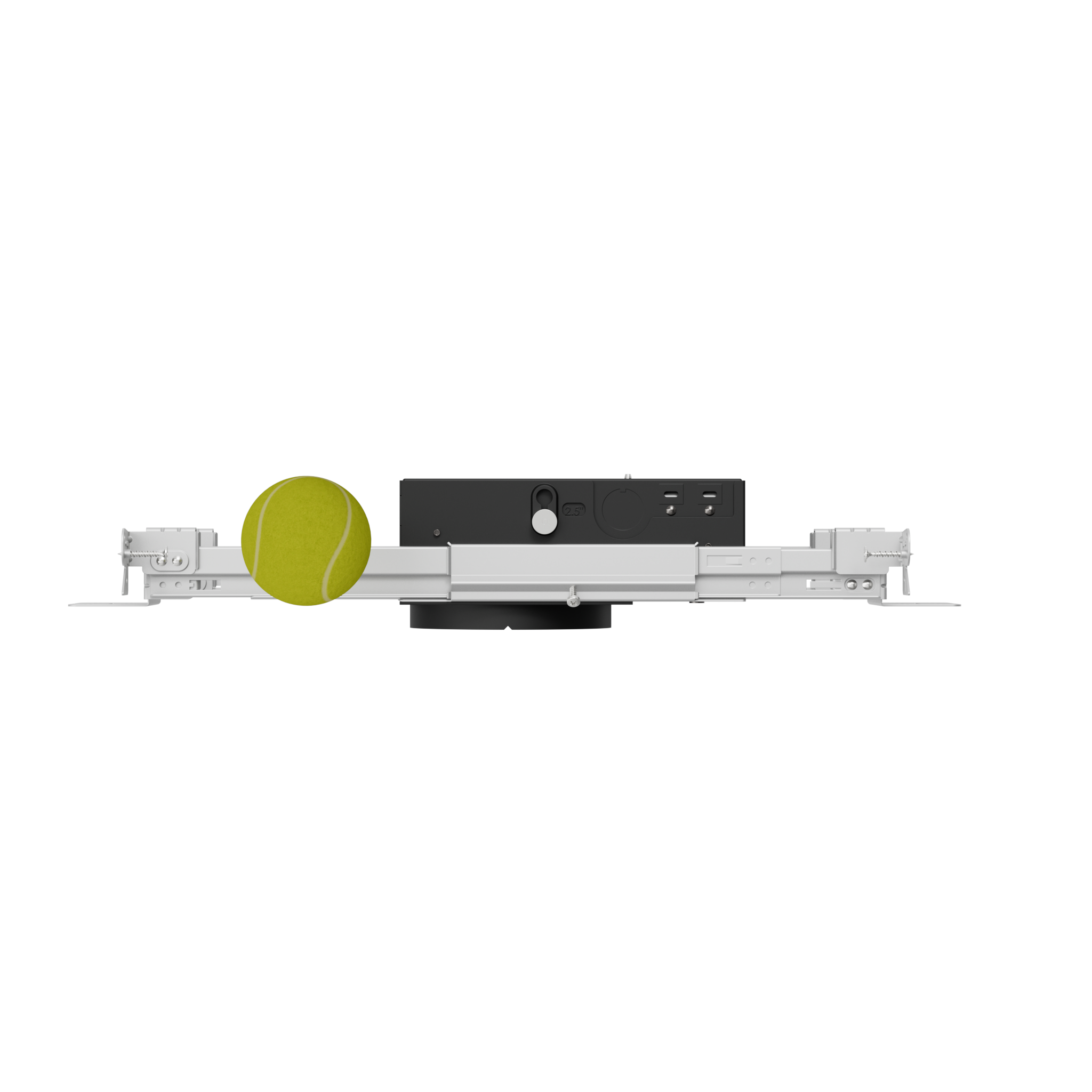

Super Shallow Housing on 2.5" Setting

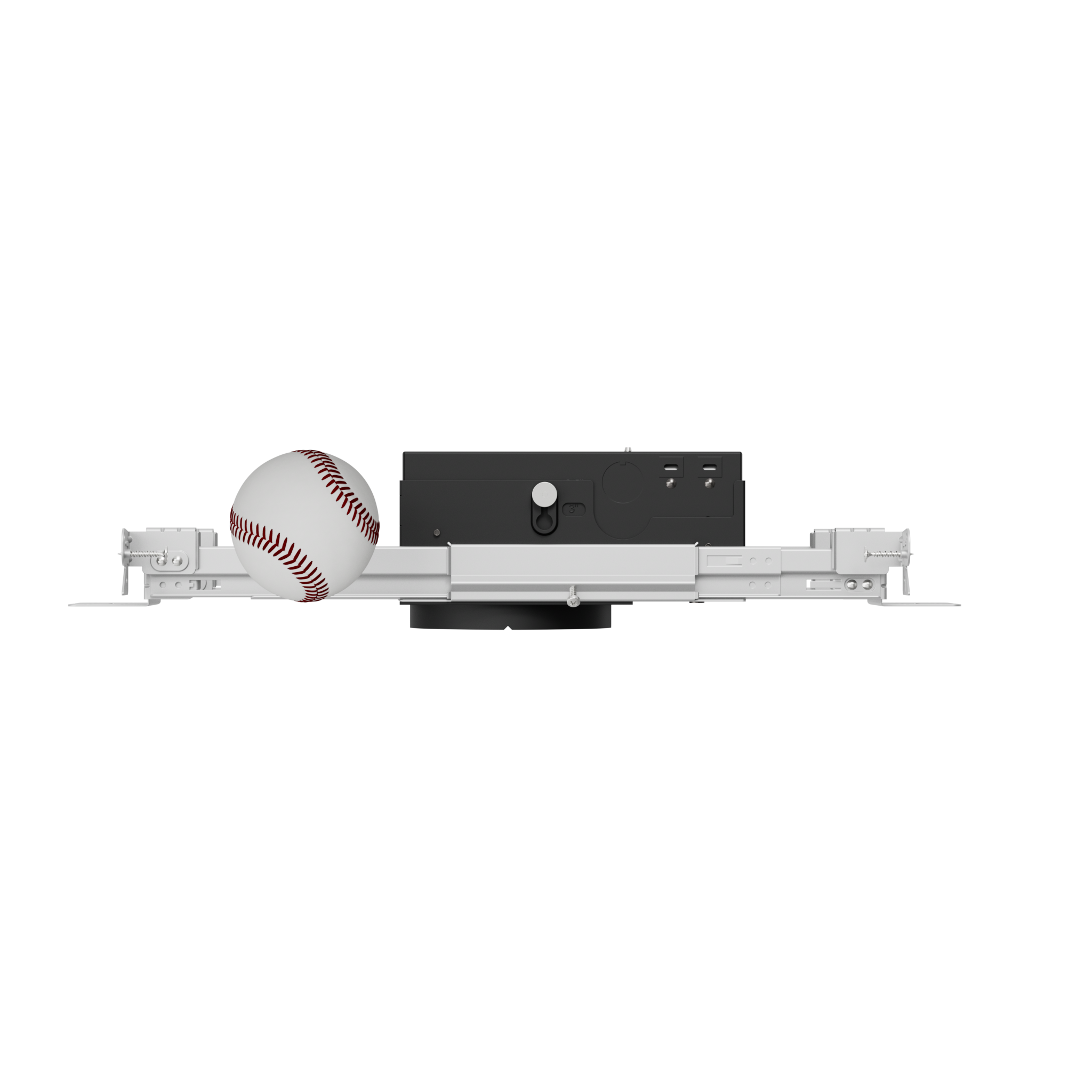

Super Shallow Housing on 3" Setting
resources
Installation Instructions
Videos
Features: Low Profile – 2.5″, Recessed, Patented Bar Hangers
Ratings: IC, Suitable for Use in Air-Handling Space – Complies with UL2043 & ASTM E283 Certified Air Tight
