True 1
Pre-Release: 1″ Downlight Family
Features: Recessed, Adjustable, Warm Dim
Lumens: Static CCT – 750 lm (14W), Warm Dim – 500 lm (14W),
Color Quality: 93 CRI, 2-step SDCM
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim (3000K-1800K)
Beam Spread: 30° Spot, 40° Flood, 50° Wide Flood
Dimming: Combo 0-10V/ TRIAC/ELV (1%)
Input: 120/277V
Installation: New Construction, Flangeless Mud-In
Trims: Round
Finish: Black
Rating: Title 24 JA8, Declare Listed, UL Listed for Damp Location, ASTM E283 Certified Air Tight, RoHS Compliant
Warranty: 5 year; 50,000 hours
The True 1 family — modular 1" recessed LED downlight system

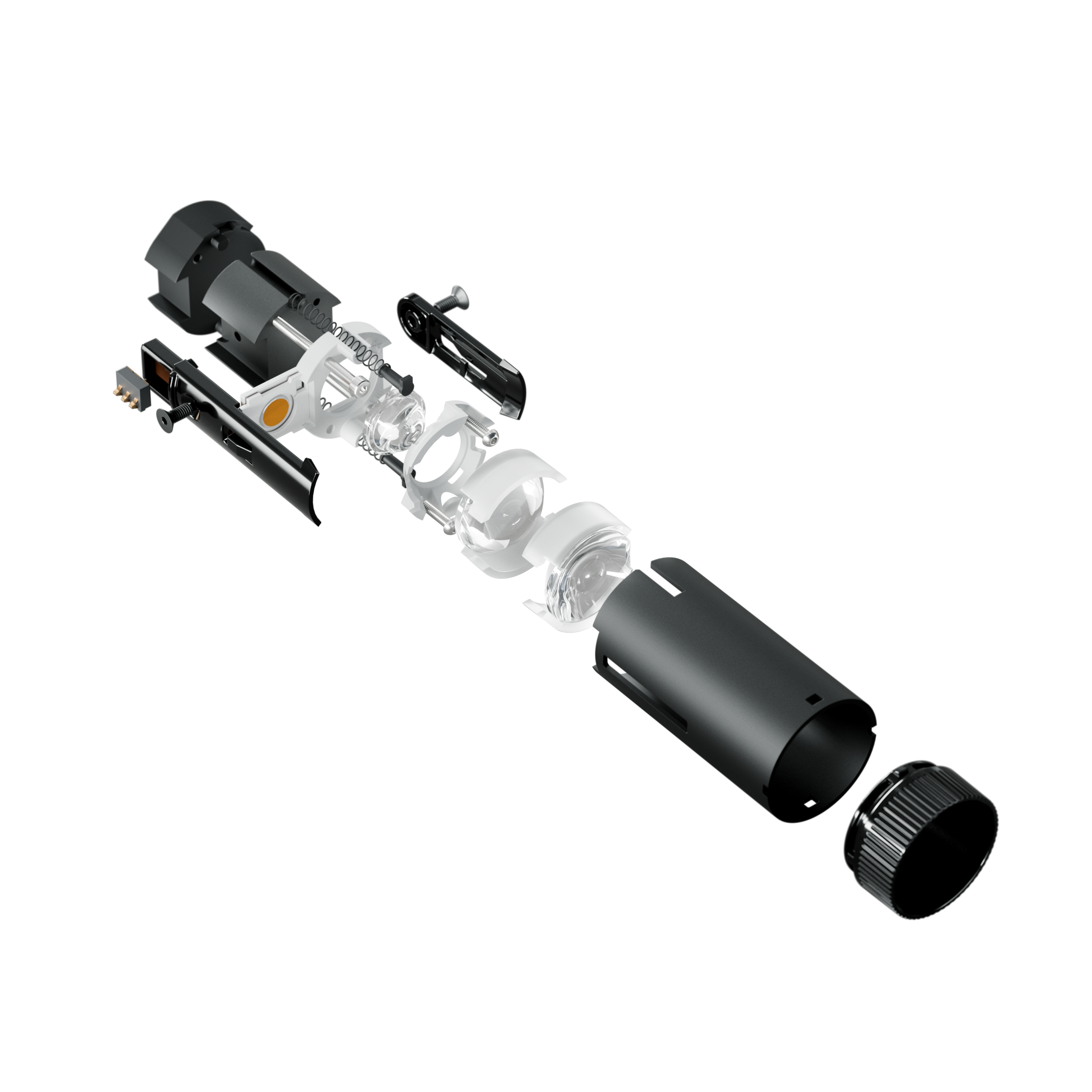

Every component engineered for precision — the True 1 light engine features an advanced optical system for superior beam control and glare reduction

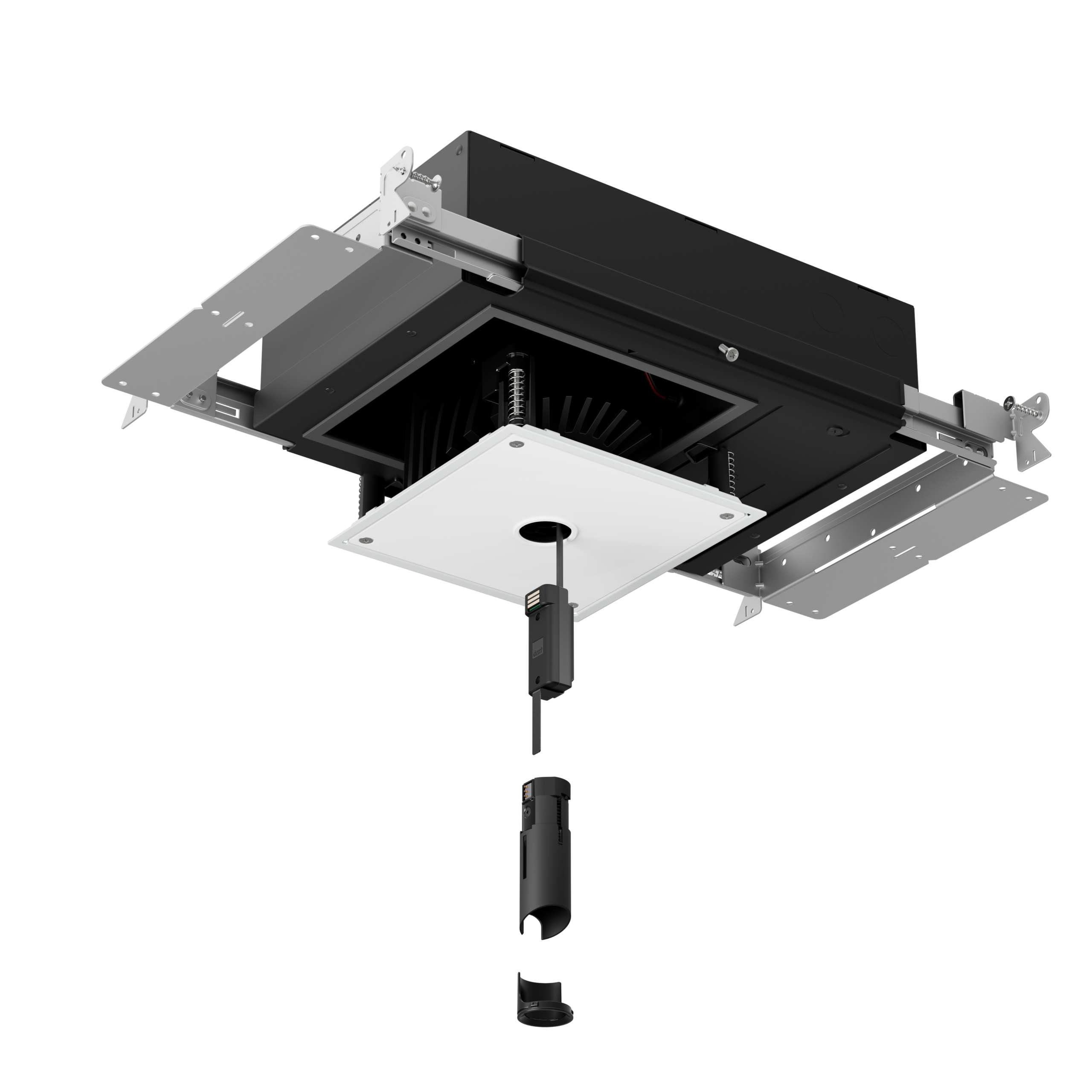

Tool-free installation made simple with the modularity of the True 1
resources
Spec Sheet
Installation Instructions
Videos
Features: Recessed, Adjustable, Warm Dim
Lumens: Static CCT – 750 lm (14W), Warm Dim – 500 lm (14W),
Color Quality: 93 CRI, 2-step SDCM
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim (3000K-1800K)
Beam Spread: 30° Spot, 40° Flood, 50° Wide Flood
Dimming: Combo 0-10V/ TRIAC/ELV (1%)
Input: 120/277V
Installation: New Construction, Flangeless Mud-In
Trims: Round
Finish: Black
Rating: Title 24 JA8, Declare Listed, UL Listed for Damp Location, ASTM E283 Certified Air Tight, RoHS Compliant
Warranty: 5 year; 50,000 hours
