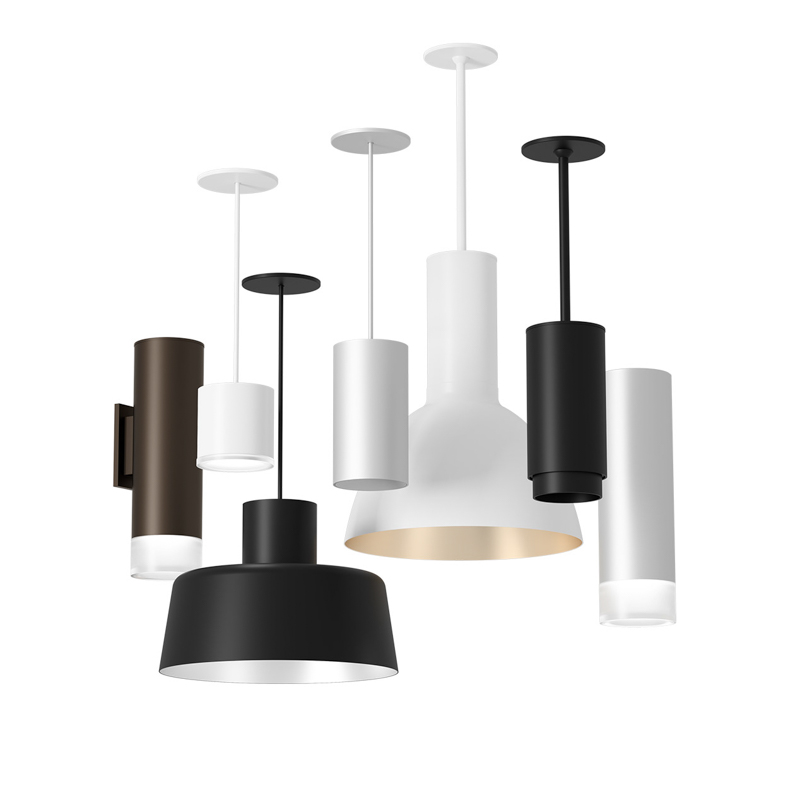

DC4 Cylinder – Retired
M Series Cylinder
This product is no longer in production. The 4″ Cylinder is its direct replacement.
resources
Spec Sheet
Custom Color Ordering Form
IES Files
Revit Files
Installation Instructions
Technical Bulletin
Videos
Related products
-
4″ Square
Features: Edgeless Design
Lumens: 750 lm (9W), 1000 lm (12W)
Color Temperature: 2700K, 3000K, 3500K
Beam Spread: Flood
Dimming: 0-10V 1%, TRIAC/ELV 5%
Ratings: Energy Star, Title 24 JA8, Wet Location, Closet Rated
-
S Series
Features : Surface Mount, Emergency
Lumens : 750 lm (9W), 1000 lm (12W), 1500 lm (17W)
Color Temperature : 2700K, 3000K, 3500K
Trims : 4″ Round, 4″ Square, 8″ Round, 18″ Linear
Ratings : Energy Star, Title 24 JA8, Wet Location, IC, Closet Rated
-
4″ Surface Mount
Features: Highly Customizable, Field Changeable Modules, Interchangeable Accessories, Downlight or Adjustable, IP65 Rated
Size: 4 inch, 8 inch, 12 inch
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)
Trims: Round, Hyperbolic, Snoot, Decorative, Shade
Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky
-
4″ Square with EM Test Switch
Features: Edgeless Design, Emergency Lighting
Lumens: 750 lm (9W), 1000 lm (12W)
Color Temperature: 2700K, 3000K, 3500K
Beam Spread: Flood
Dimming: 0-10V 1%
Ratings: Energy Star, Title 24 JA8, Wet Location
Related products
-
X Series 3″ Cylinder
Features: Surface Mount, Pendant, Wall Mount, Up/Down, Wall Wash, Warm Dim, Tunable White, Turtle Friendly
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly
Trims: Round, Snoot, Wall Wash, Decorative
Ratings: Energy Star, Title 24 JA8, Wet Location
-
4″ Wall Mount
Features : Highly Customizable, Field Changeable Modules, Interchangeble Accessories, Downlight or Adjustable, Up and Downlight, IP65 Rated
Size: 4 inch, 8 inch, 12 inch
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (28W), 2500 lm (37W), 3000 lm (40W)
Trims : Round, Snoot, Decorative, Wall Wash
Ratings : Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky
-
18″ Linear
Features: Edgeless Design
Lumens: 1500 lm (17W)
Color Temperature: 2700K, 3000K, 3500K
Beam Spread: Flood
Dimming: 0-10V 1%, TRIAC/ELV 5%
Ratings: Energy Star, Title 24 JA8, Wet Location, IC
-
4″ Cylinder
Features: Surface Mount, Pendant, Wall Mount, Adjustable, Up/Down, Warm Dim, Emergency, Turtle Friendly
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W), 2000 lm (24.5W), 2500 lm (37W), 3000 lm (40W)
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White, Turtle Friendly
Trims: Round, Wall Wash, Snoot, Decorative, Shades
Ratings: Energy Star, Title 24 JA8, Declare, IP65 Wet Location, NSF/ANSI 2 Splash Zone Safe, Dark Sky
