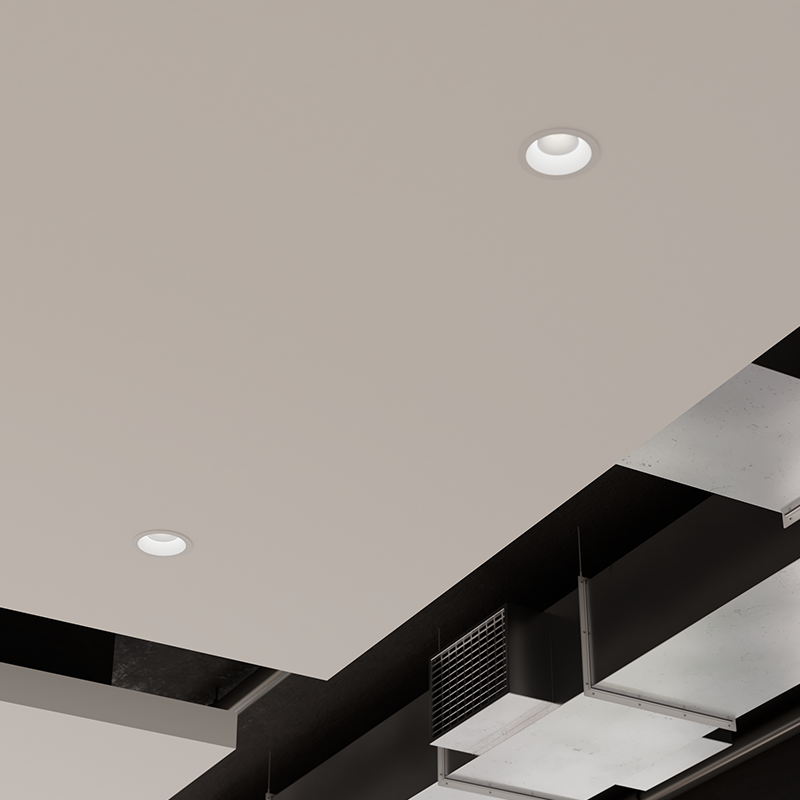

C Series Downlight
C Series Module
Features: Brightness Switch or Fixed Output, DMF LightSpeed
Compatibility: C Series 4″ Housings and Trims, C Series 6″ Housings and Trims
Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)
Color Quality: 80+ CRI, 3-step SDCM
Color Temperature: 3000K, 3500K, 4000K
Beam Spread: General Ambient (90°+)
Dimming: 0-10V (5%)
Input: 120/277V
Ratings: Energy Star, Wet Location, Declare, RoHS Compliant, NSF/ANSI 2
Warranty: 5 year; 50,000 hours
resources
Spec Sheet
Installation Instructions
Videos
Features: Brightness Switch or Fixed Output, DMF LightSpeed
Lumens: 1000 lm (13.6W), 1500 lm (17W), 2000 lm (24.5W)
Color Temperature: 3000K, 3500K, 4000K
Beam Spread: General Ambient (90°+)
Dimming: 0-10V (5%)
Ratings: Energy Star, Wet Location, Declare, RoHS Compliant, NSF/ANSI 2
