4″ Downlight

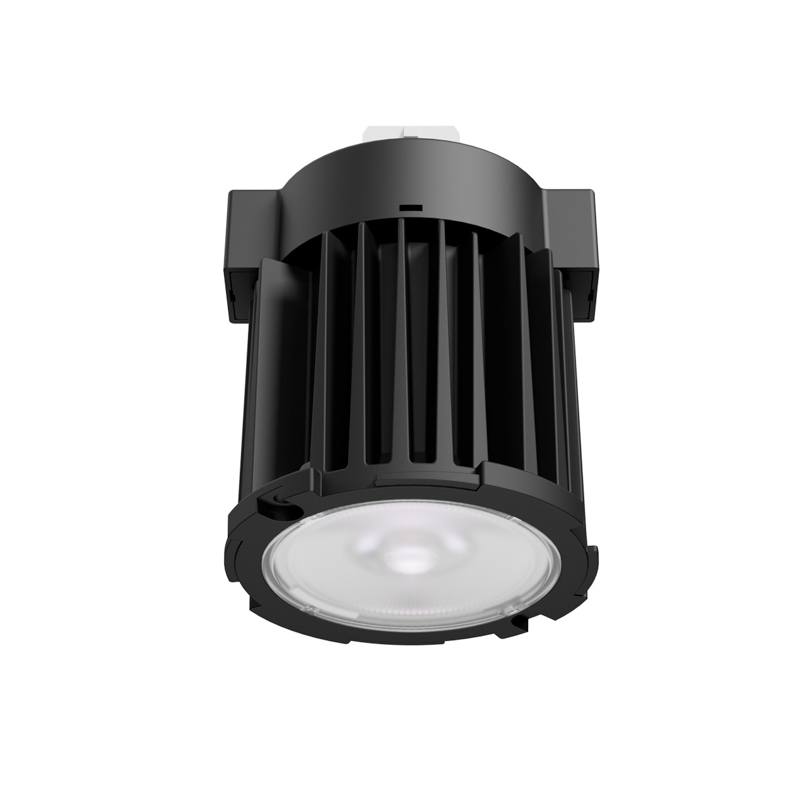

M Series Downlight Module
Features: Field Changeable Optics, Integrated Driver, Warm Dim
Compatibility: M Series Residential 4″ Round IC Rated Housings and Trim, M Series Residential 4″ Square IC Rated Housings and Trims, F4NC Surface Mount Housing and Trim, Retrofit Housings and Trims, Retrofit Junction Box and Surface Mount Trim
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)
Color Quality: 93 CRI, 2-step SDCM
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White
Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90°+ General Ambient, Linear, Soft Focus
Dimming: 0-10V 1%, TRIAC/ELV 1%, DALI 0.1%
Input: 120/277V
Ratings: Energy Star, Title 24 JA8, Wet Location, NSF/ANSI 2 Splash Zone Safe
Warranty: 5 year; 50,000 hours
resources
Spec Sheet
Custom Color Ordering Form
IES Files
Revit Files
Installation Instructions
Features: Field Changeable Optics, Integrated Driver, Warm Dim, Tunable White
Lumens: 750 lm (9.5W), 1000 lm (12.5W), 1250 lm (14.3W), 1500 lm (14.3W)
Color Temperature: 2400K, 2700K, 3000K, 3500K, 4000K, Warm Dim, Tunable White
Beam Spread: 15° Narrow Spot, 25° Spot, 40° Flood, 60° Wide Flood, 90°+ General Ambient, Linear, Soft Focus
Dimming: 0-10V 1%, TRIAC/ELV 1%, DALI 0.1%, Lutron EcoSystem 1%
Ratings: Energy Star, Title 24 JA8, Wet Location, NSF/ANSI 2 Splash Zone Safe
